Transducers

SMT-0540-S-R

Audio transducer; Type: Electromagnetic; Frequency: 4 kHz; Sound pressure level: 78 dBA; Operating temperature: -40 C to +85 C; Current value: 100mA; Maximum voltage: 3V; Resonant author frequency: 4 kHz; Mount: SMD / SMT

$ 1.64 1.64 USD

SMT-0825-T-R

Transducer buzzers; Externally driven Magnetic; Voltage: 3,6V, 90mA; Frequency: 2.7kHz, 85dB at 3.6V, 10cm; Surface mount; Solder pads

$ 1.99 1.99 USD

SMT-0940-T-3V-R

Audio speaker transducer; Case Material: LCP; Pin Material: Sn Plated Brass; Piezo-based device for ultra-low current draw; Mounting: Surface Mount; Frequency: 4000 ± 500 Hz; Height: 1,90 mm; Width: 9,00 mm; Length: 9,00 mm

$ 2.57 2.57 USD

SMT-0821-T-R

PUI Audio transducer buzzers; Externally Driven Magnetic; Voltage: 3.6V, 90mA; Frequency: 2.1kHz, 87dB at 3.6V, 10cm; Surface mount; Welding pads; Weight: 0.43g

$ 1.99 1.99 USD

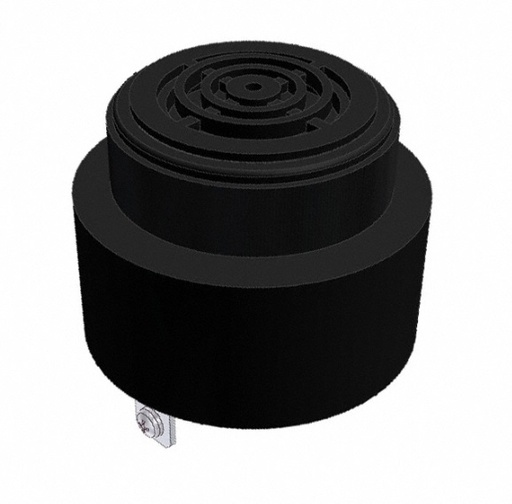

AI-4228-P-C120-R

Piezo electric buzzer; Nominal voltage: 110VCA; Freq.: 2,8 KHz; Oper. mode: continuous; Supply current: 20mA

$ 20.51 20.51 USD

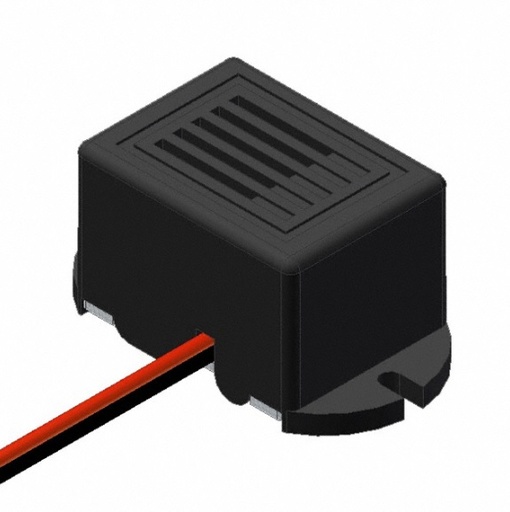

AI-2304-TF-LW120-5V-R

Audio indicator

$ 3.22 3.22 USD

X-4033-TF-LW80-R

Indicator; Piezo; Rated Voltage: 6VDC; Oper. Voltage: 1,5-12 VDC; 106dBa; Resonant Freq.: 3300Hz; Tone: Continuos; 9mA; Rohs Compliant

$ 5.25 5.25 USD

AI-4228-TF-LW140-R

Piezo audio indicator; Rated voltage: 12VDC; Oper. voltage: 3-20 VDC; SPL min: 105 dbA; Resonant freq.: 2800 ± 500 Hz; Tone: continuos; 10mA

$ 2.73 2.73 USD

AI-3245-TF-LW95-R

Audio indicator; Piezo; Rated voltage: 12VDC; Oper. voltage: 3-28VDC; SPL@10cm: 90 dba; Resonant freq.: 4500 hz; Tone: continuous; 5mA

$ 2.11 2.11 USD

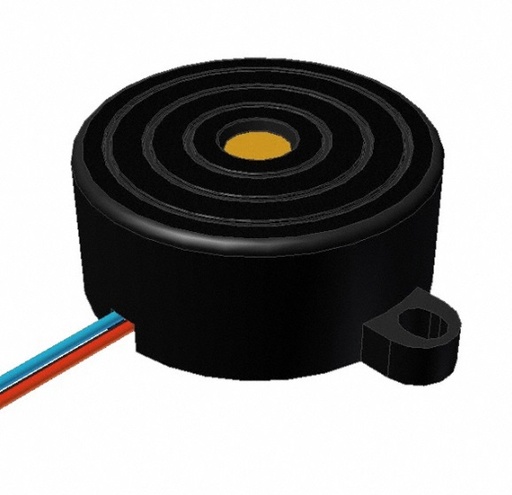

AT-3237-TF-LW140-R

Audio Transducer; Piezo; Rated Voltage: 12Vp-p; Oper. Voltage: 3-28Vp-p; Spl@10Cm: 98Db; Resonant Freq.: 3700 ± 500Hz; Capacitance: 20000 Pf; 7mA

$ 1.43 1.43 USD

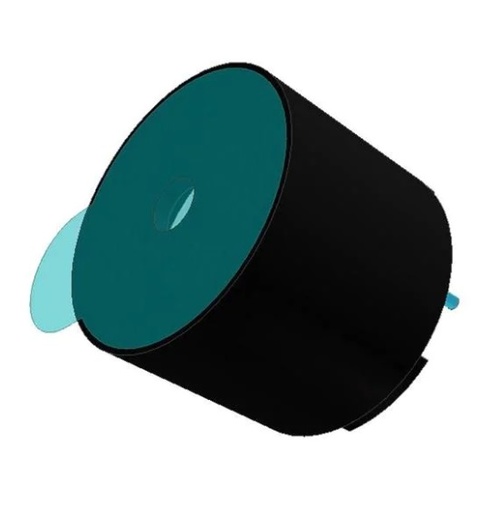

AT-1220-TWT-5V-R

Audio Transducer; Electro Mechanical; Rated Voltage (Square Wave): 5vpp; Oper. Voltage: 3-8Vp-P; Spl Min: 85 Dba; Resonant Freq.: 2048±200Hz; 45mA; 47 Ohm

$ 0.62 0.62 USD

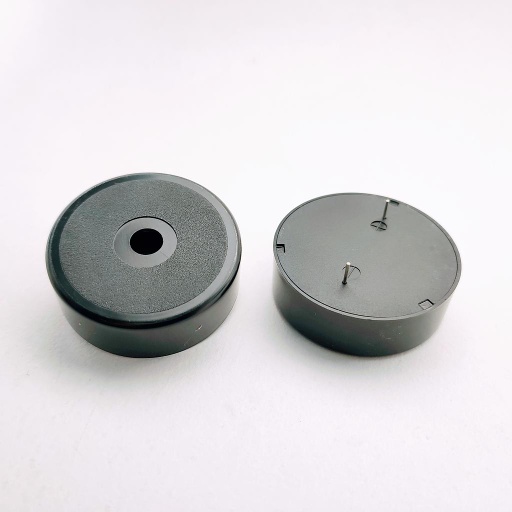

X-4328-TT-R

Audio Indicator; Piezo; Rated Voltage: 9Vdc; Oper. Voltage: 3-20 Vdc; 108 dBa; Resonant Freq.: 2800 Hz; Tone: Continuous; 12mA

$ 3.52 3.52 USD
